Rhomboidal wheels distribution trolley for pipes transport
SERIES 137 | MODEL 137

FUNCTION / EQUIPMENT

Trailer trolley with rhomboidal wheel distribution for pipes and bars transport (up to mm 3000). Equipped with parking brake working on the central wheels and suspensions on front wheels.

FEATURES

  • Four wheel groups “Bertoli” with rhomboidal distribution, can be partitioned, with built-in hermetically grease-sealed hubs:
    >    Four central fixed ø 370 x 75, with independent rotation, with load-bearing function.

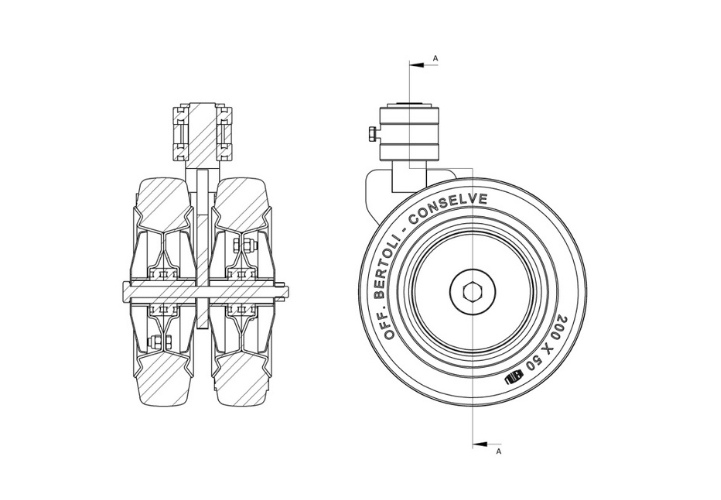

    >    Two (one on each head) pivoting ø 200 x 50, with balancing function, twinned.
  • Main characteristics of rubber ring:
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort
    >    Not-pierceable
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Standard dimentions :
Lenght suitable for the transport of bars up to mm 3000
Width mm 500; 800; 1000; 1200

Standard capacities:
Kg 1.500
