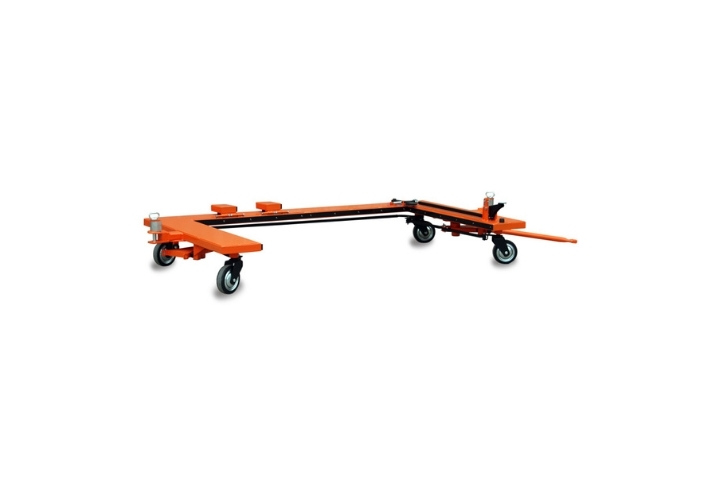

Two-faced trolley with synchronized steering system for “satellite” transport SERIES 10 | MODEL 10 – 114 – KA
FUNCTION/EQUIPMENT

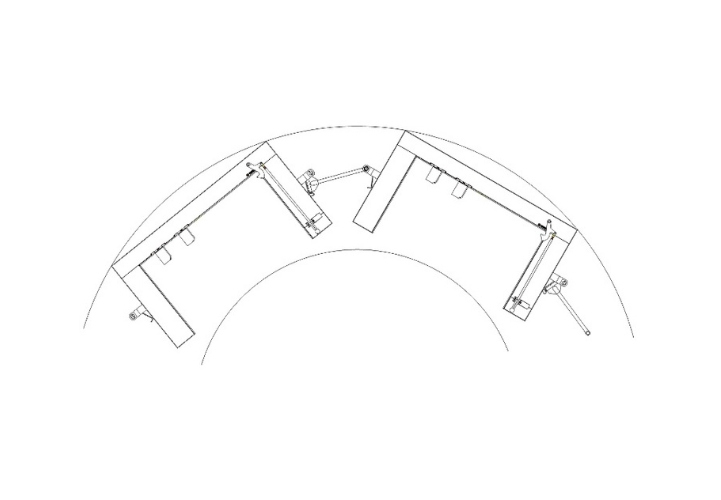

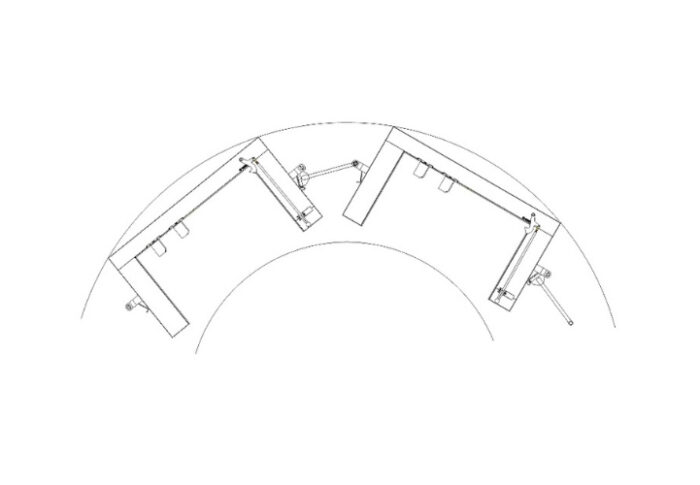

System composed of “mother” trolley fitted for the transport of “satellite” trolley equipped with custom solutions. Steering System for an easy and single trajectory of a trolleys journey. Towing on each head. Suitable for industrial paving.
FEATURES
“Mother” trolley

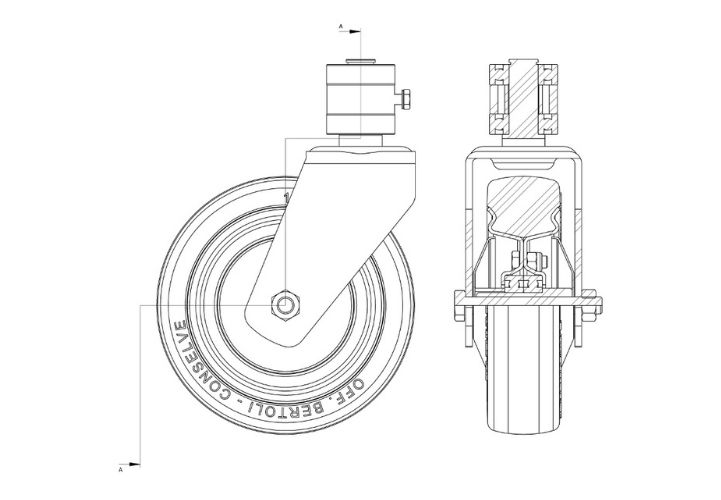

- Four patented rubber wheels “Bertoli ø 150 x 45”, can be partitioned, with threadguards.
> Our particular system of fork swivelling on vertical hub, allows to distribute the load on two ball bearings, and guarantees a great handling and long life. The rounded form of the rubber ring makes better all these characteristics.
> The rubber rings are belted with multiple layers of special rubberized canvas, to guarantee non-deformability and long life.
> Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort.
> Imperforabile
> Acid, oil, solvent proof
> Trace proof
> Thermal resistance from + 180°C a – 45°C - Traction effort lower than 100 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.
TYPOLOGIES

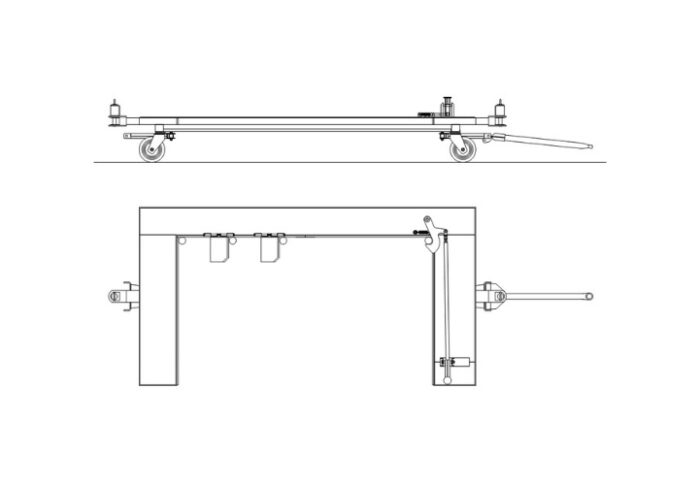

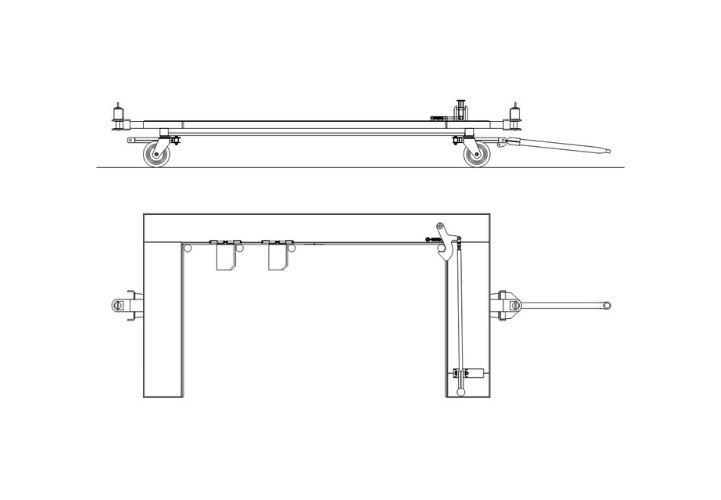

Standard dimensions:
mm 2000 x 1060
Standard Capacities:
Kg 200 + 200;
kg 400 + 400
OPTIONAL
> Fixed or variable pitch shelving
> Self-centering angles
> Custom setup
