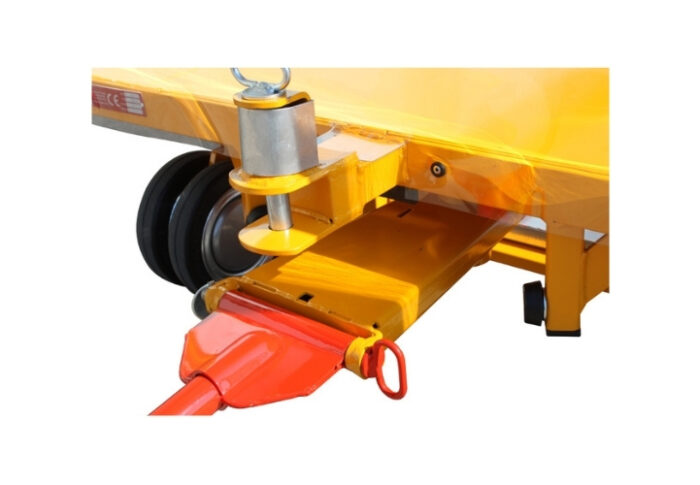

Trolley with synchronized steering system for trolley transport
SERIES 10 | MODEL 10 – GKA18

FUNCTION/EQUIPMENT

System composed of “mother” trolley fitted for the transport of trolley. Steering System for an easy and single trajectory of a trolleys journey. Suitable for industrial paving. Towing on each head.

FEATURES

  • Eight patented rubber wheels “Bertoli ø 200 x 50”, twin installation, can be partitioned, with threadguards.
    >    Our particular system of fork swivelling on vertical hub, allows to distribute the load on two ball bearings, and guarantees a great handling and long life. The rounded form of the rubber ring makes better all these characteristics.
    >    The rubber rings are belted with multiple layers of special rubberized canvas, to guarantee non-deformability and long life.
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort.
    >    Imperforabile
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C
  •  Traction effort lower than 100 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Standard dimentions:
two compartments mm 660 x 860
Other dimensions on demand

Standard capacities:
Kg 500 – Kg 1.000
