Platform trailer trolley with synchronized steering system SERIES 2 – V | SERIES 43 – V
FUNCTION / EQUIPMENT
Platform trailer trolley for transport of goods. Load platform covered with embossed steel plate. Synchronized steering system for an easy and single trajectory of a trolleys journey. For mixed paving.
FEATURES

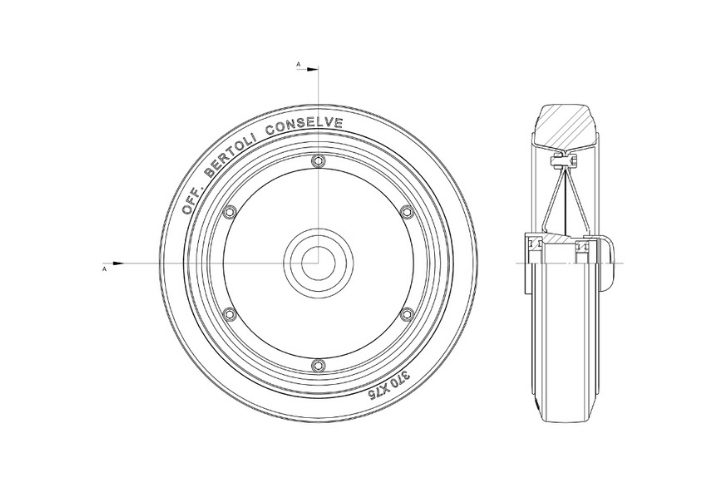

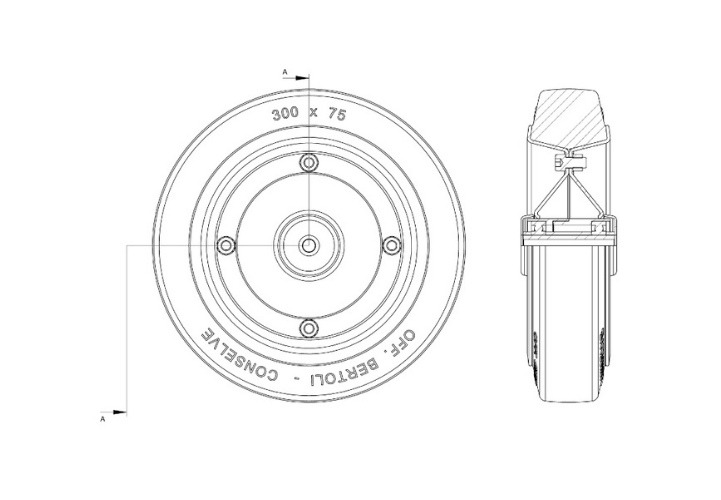

- Four rubber wheels “Bertoli”, with built-in hermetically grease-sealed hubs.
> Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort
> Non-pierceable
> Acid, oil, solvent proof
> Trace proof
> Thermal resistance from + 180°C a – 45°C. - Traction effort lower than 100 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.
TYPOLOGIES
Standard dimensions:
mm 2000 x 1000
mm 2500 x 1250
mm 3000 x 1500
Load platform covered with embossed steel plate.
Other dimensions on demand
Standard Capacities:
kg 1.000;
kg 1.500;
kg 2.000;
kg 3.000;
kg 4.000.
OPTIONAL
> Load platform covered with embossed aluminium plate or stainless steel AISI 304
> Front and rear headboard
> Side tailboard retaining
> Service Brake
> Upper equipment on demand
> Rain covering
