Platform trailer trolley
SERIES 2 – S | SERIES 43 – SE

FUNCTION / EQUIPMENT

Platform trailer trolley for transport of goods. For mixed paving.

FEATURES

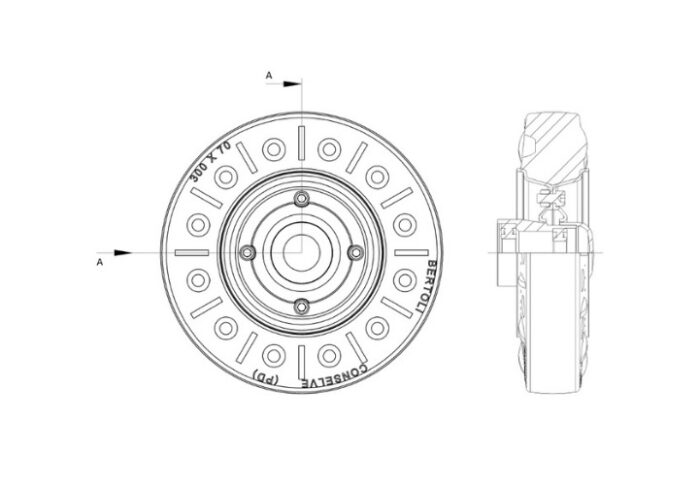

  • Four rubber wheels “Bertoli”, with built-in hermetically grease-sealed hubs.
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort
    >    Non-pierceable
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C.
  •  Traction effort lower than 100/150 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Standard dimensions:
mm 2000 x 1000
mm 2500 x 1250
mm 3000 x 1500
mm 4000 x 1500
Load platform covered with embossed steel plate.
Other dimensions on demand.

Standard Capacities:
kg 1.000;
kg 1.500;
kg 2.000;
kg 3.000;
kg 4.000.

OPTIONAL

>    Load platform covered with embossed aluminium plate or stainless steel AISI 304
>    Front and rear headboard
>    Side tailboard retaining
>    Service Brake
>    Upper equipment on demand
>    Rain covering
>    Lighting kit
