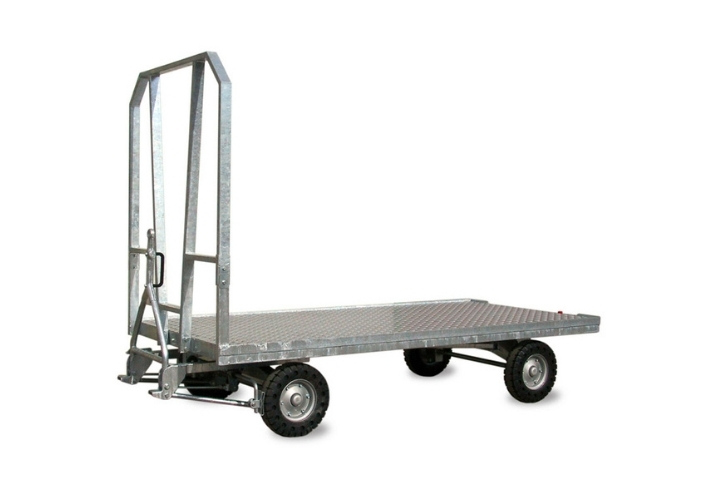

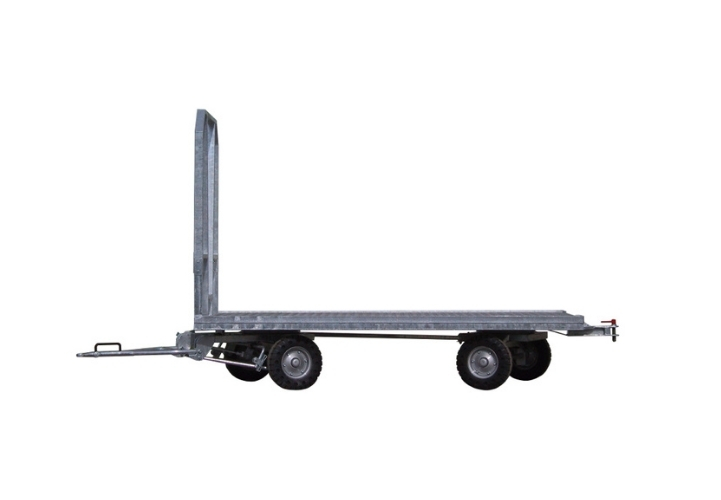

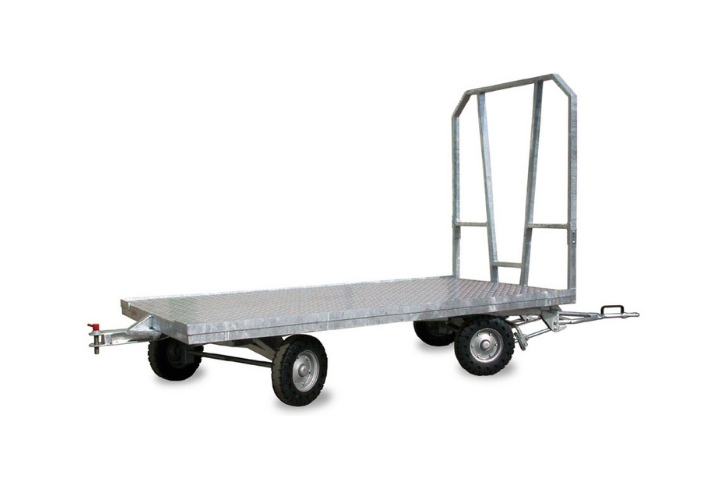

Platform trailer trolley for markets
SERIES 43 | MODEL 43 – VSEZ

FUNCTION / EQUIPMENT

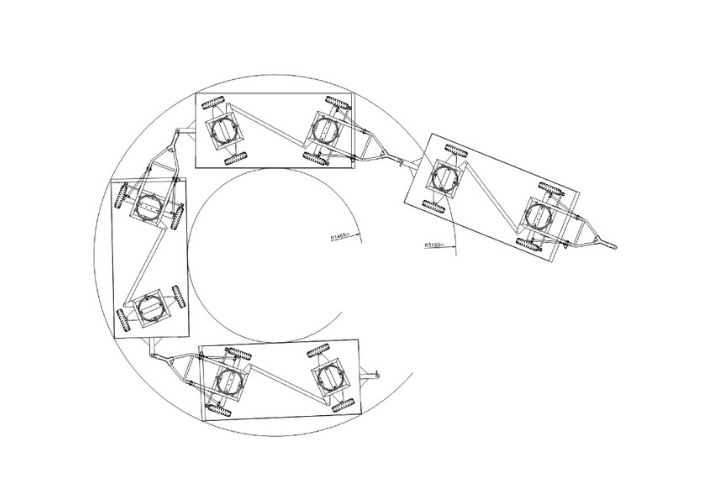

Hot–galvanized trailer trolley covered with embossed aluminium plate. Synchronized steering system for an easy and single trajectory of a trolleys journey. For mixed paving.

FEATURES

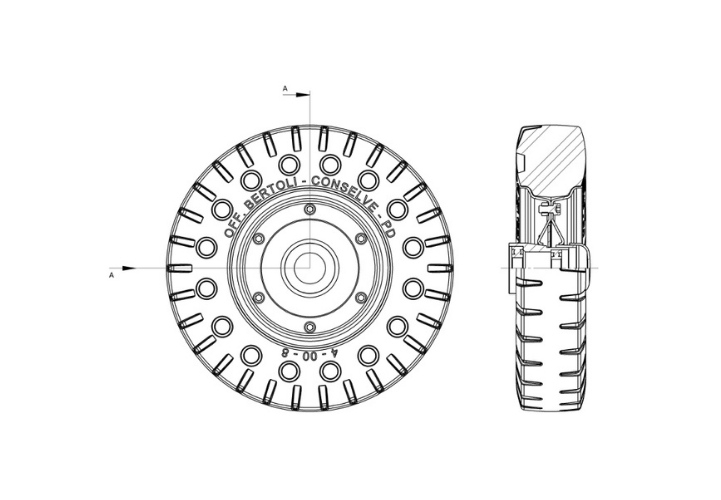

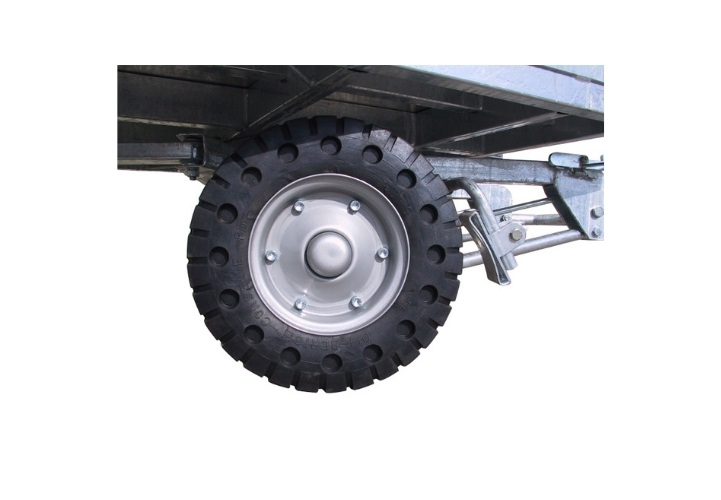

  • Four patented rubber wheels “Superelastic Bertoli ø 4.00 – 8”, with built-in hermetically grease-sealed hubs.
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort
    >    Non-pierceable
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C.
  • Traction effort lower than 150 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Standard dimensions:
mm 2000 x 1000
mm 2500 x 1250
mm 3000 x 1500
mm 3000 x 2000
Other dimensions on demand.

Standard Capacities:
Kg 2.000;
kg 3.000;
kg 4.000

OPTIONAL

>    Service brake
>    Load platform covered stainless steel AISI 304

Do you want to download the product technical sheet?
