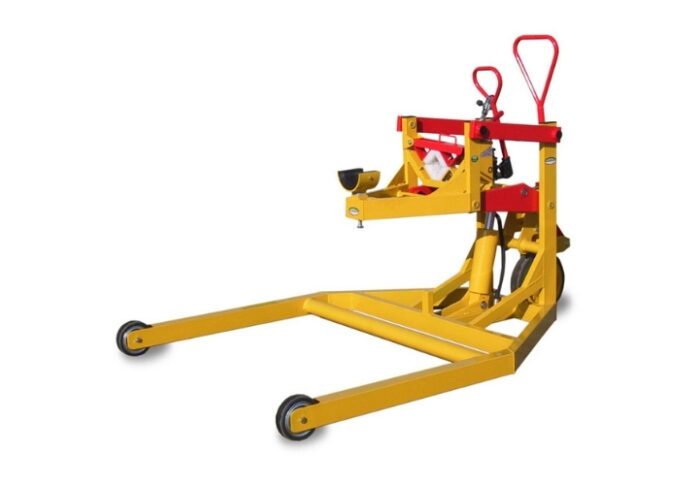

Lifting trolley
SERIES 109 | MODEL 109 – 3

FUNCTION / EQUIPMENT

Trolley for positioning and insertion of an axle into a coil. Hydraulic lifting system working on deformable parallelogram.

TYPOLOGIES

  • Three patented rubber wheels “Bertoli”, can be partitioned. Two fixed ø 150 x 45 and one driving ø 300 x 75, driven by drawbar.
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort.
    >    Not-pierceable
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C
  •  Traction effort lower than 100 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Custom product.
