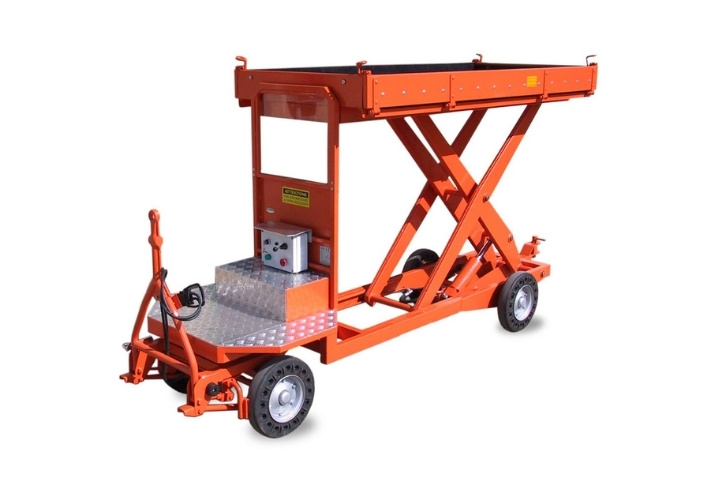

Liftable trailer trolley for batteries transport SERIES 93 | MODEL 93 – F-1500
FUNCTION / EQUIPMENT
Trailer trolley equipped with liftable load platform for batteries transport in railway stations. For crossing tracks close to the ground. For mixed paving.
FEATURES
- Four patented rubber wheels “Semi-pneumatic Bertoli ø 400 x 80”, with built-in hermetically grease-sealed hubs.
> Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort
> Non-pierceable
> Acid, oil, solvent proof
> Trace proof
> Thermal resistance from + 180°C a – 45°C. - Traction effort lower than 100 N/t: a top performance in its field.
To discover all the features of this product, consult the technical sheet.
TYPOLOGIES
Standard dimensions:
mm 2200 x 960 for transport and handling of n° 7 batteries IEAU FS
• Minimum height from the ground mm 400
• Maximum height from the ground mm 1000 ÷ 1500
Other dimentions on demand
Standard capacities:
Kg 700
