Container trolley with rhomboidal wheels distribution
SERIES 137 | MODEL 137 – HB3 – Z

FUNCTION / EQUIPMENT

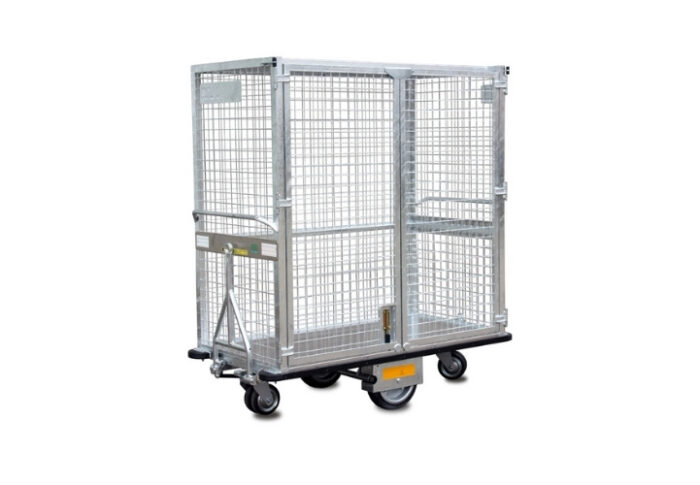

Trolley with rhomboidal wheels distribution, for mixed towing, equipped with mesh container and wrapping rubber buffer, for the transport of hospital equipment. Suitable for industrial paving

FEATURES

  •  Both for mechanized towing and manual handling.
  •  Six patented rubber wheels “Bertoli”, can be partitioned, with rhomboidal distribution:
    >    Two central fixed ø 300 x 75, with load-bearing function, with built-in hermetically grease-sealed hubs.

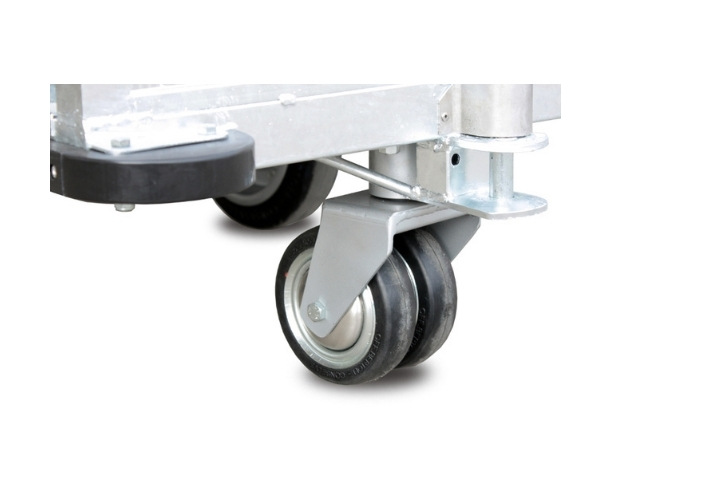

    >    Two (one on each head) ø 150 x 45, pivoting and twinned, with balancing function and with threadguards.
    >    Our particular system of fork swivelling on vertical hub, allows to distribute the load on two ball bearings, and guarantees a great handling and long life. The rounded form of the rubber ring makes better all these characteristics.
    >    The rubber rings are belted with multiple layers of special rubberized canvas, to guarantee non-deformability and long life.
    >    Natural rubber ring studied and made to obtain more elasticity, long life, minimum traction effort.
    >    Imperforabile
    >    Acid, oil, solvent proof
    >    Trace proof
    >    Thermal resistance from + 180°C a – 45°C.
To discover all the features of this product, consult the technical sheet.

TYPOLOGIES

Standard dimentions:
mm 1350 x 690 x h 1365

Standard capacities:
kg 500
